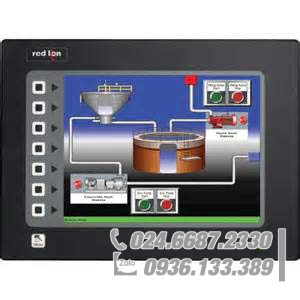

Red Lion G315C Operator Interface combines powerful features normally found only in PC-based HMIs, with the reliability of a dedicated operating system.
Red Lion G315C Operator Interface Specification:
15-inch TFT Active Matrix 32K Color XGA 1024 X 768 Pixel LCD
10-button keypad for on-screen menus
Up to 6 RS-232/422/485 Communications Ports (2 RS-232 and 2 RS-422/485 on board, 1 RS-232 and 1 RS422/485 on Optional Communications Card)
10 Base T/100 Base-TX Ethernet Port Supports Multiple Protocols Simultaneously (2nd Ethernet Port Optional)
Built-in Web Server and FTP Server/Client
USB Port to Download the Unit’s Configuration from a PC or for Data Transfers to a PC
Unit’s Configuration is Stored in Non-volatile Memory
Power unit from 24 VDC +/- Supply
