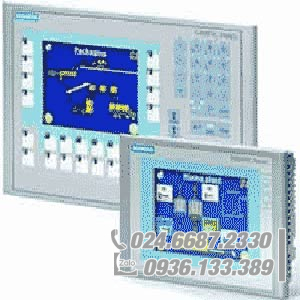

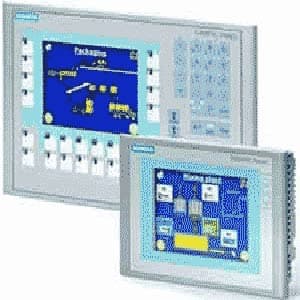

Siemens SIMATIC HMI Panels Series 270 Model OP 277 Descriptions:
Display:5.7 inch TFT Display , 256 colors
Resolution:320 x 240 pixels
Control elements:
Membrane keyboard
36 system keys
24 freely configurable
function keys (18 with LED)
User memory:4MB
Interfaces:
1 x RS485 , 1 x RS422
1 x USB, 1 x RJ 45 Ethernet
1 x Multi Media Card Slot
Degree of protection:
IP 65, NEMA 4x front if mounted
IP 20 rear
Installation cutout: 281 x 177 mm (W x H)
Front panel:308 x 204 mm (W x H)
Device depth:59mm
Configuration:SIMATIC WinCC Comfort (TIA Portal)
Software:WinCC flexible Standard
The OP277 offers the same features and functions as the TP 277, but is operated via keybord. There is a successor for this device too: The KP700 comfort which offers the same convincing features as the TP700 comfort
Welcome to contact us for more information.
