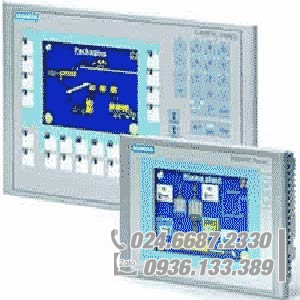

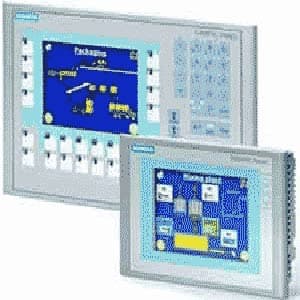

Siemens SIMATIC Panels series 270 Model TP277 Descriptions:
Display:5.7 inch TFT Display , 256 colors
Resolution:320 x 240 pixels
Control elements:Touch screen analog resistive
User memory:4MB
Interfaces:
1 x RS485 , 1 x RS422
1 x USB, 1 x RJ 45 Ethernet
1 x Multi Media Card Slot
Degree of protection:
IP 65, NEMA 4x front if mounted
IP 20 rear
Installation cutout:197 x 141 mm (W x H)
Front panel:212 x 156 mm (W x H)
Device depth:45mm
Configuration:SIMATIC WinCC Comfort (TIA Portal)
Software:WinCC flexible Standard
The TP 277 features a high-contrast 6†TFT display. The user memory of 4 MB provides sufficient space even for more complex projects and can be expanded further via MultiMedia card, e.g., for recipes and archive data. The data can be stored in the Windows standard format CSV, and be processed with MS Excel or Access. The contents of the alarm buffer are preserved even if the panel is turned off.
Welcome to contact us for more information.
