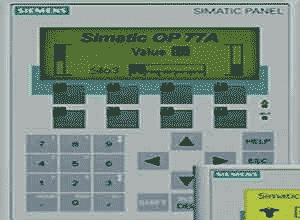

Siemens SIMATIC Panel OP 77A is designed for replacing the Text Panel OP7 the OP 77A offers a 4.5 inch monochrome graphic display, language switching, user administration and a comprehensive alarm system.
A comprehensive keypad including 8 freely configurable function keys provides convenient operation. The OP 77A can be connected to S7 controllers via MPI or PROFIBUS.
As a mounting compatible successor you can use the KP400 Basic color (in preparation) in future. The PROFINET capable device offers a color display with a much higher resolution.
Siemens SIMATIC Panel OP 77A Specifications:
Display:4.5 inch STN-display monochrome
Resolution:160 x 48 pixels
Control elements:23 System keys 8 freely configurable function keys(4 with LED)
User memory:256KB
Interfaces:
1 x RS485 , 1 x RS422
1 x USB, 1 x RJ 45 Ethernet
1 x Multi Media Card Slot
Degree of protection:
IP 65, NEMA 4x front if mounted
IP 20 rear
Installation cutout:135 x 171 mm (W x H)
Front panel:150 x 186 mm (W x H)
Device depth:38.5mm
Configuration:SIMATIC WinCC Comfort (TIA Portal)
Software:WinCC flexible Standard
Contact us for more information.
