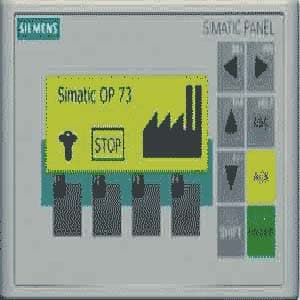

Siemens SIMATIC Panels OP 73 is designed for replacing the Text Panel OP3 the OP 73 offers a 3 inch monochrome graphic display, language switching, user administration and a comprehensive alarm system. It can be connected to S7 controller via MPI or PROFIBUS.
As a successor with a similiar footprint and range of application you can use the KP300 Basic mono for PROFINET environments which is considerably lower priced.
Siemens SIMATIC Panels OP 73 Specifications:
Display:3 inch STN-display monochrome
Resolution:160 x 48 pixels
Control elements:8 System keys 4 freely configurable function keys
User memory:256KB
Interfaces:
1 x RS485 , 1 x RS422
1 x USB, 1 x RJ 45 Ethernet
1 x Multi Media Card Slot
Degree of protection:
IP 65, NEMA 4x front if mounted
IP 20 rear
Installation cutout:138 x 68 mm (W x H)
Front panel:154 x 84 mm (W x H)
Device depth:28.5mm
Configuration:SIMATIC WinCC Comfort (TIA Portal)
Software:WinCC flexible Standard
More information,please contact us.
