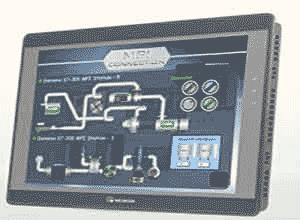

Weinview TK Màn hình cảm ứng TK6070iP

Weinview TK Series Touch Screen TK6070iP Descriptions:
Display:
Display Size:7”TFT
Resolution (WxH dots):800 x 480
Brightness (cd/m2):350
Contrast Ratio:500:1
Color:65536
Resolution (W x H):800×480
Back Light:LED
Back Light Life Time:30,000 hr
Processor:32bit RISC CPU 400 MHz
Enclosure:Plastic
Touch Panel:
Type:4 wires resistive type
Weinview TK Series Touch Screen TK6070iP Specification:
Panel Cutout (W x HxD):200.4 x 146.5 x 34mm
Hole size (mm):192 x 138
Weight (KG):Approx0.52 kg
Certification:
CE:Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards
UL:pending
Voltage Resistance:500 VAC (1 min)
Isolation Resistance :Exceed 50MΩ at 500 VDC
Vibration Endurance:10 to 25 Hz (X,Y,Z direction 2G 30minutes)
Protection Structure:IP65 front panel (O ring seal)
Storage Temperature:-20°~60°C (-4°~140°F)
Operating Temperature:0°~50°C (32°~122°F)
Operation Humidity:10-90% RH (non-condense)
Touch Screens can be customized by us according to your requirements.
Welcome to contact us for more information.
