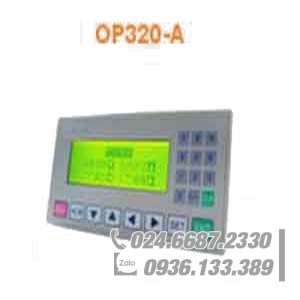

Xinje OP Operate Panel OP320-A Description:
3.7-inch Monochrome LCD,20 key-presses
Suitable for various PLC
Password protection and internal clock(Optional)
Text fairy, display dynamic text
Alarm information list, display current alarm information by items at real time
Key-press can be defined as function keys
With backlight STN LCD.
Xinje OP Operate Panel OP320-A Specification:
Display:
Model:Kelly LCD
Using life:Up to 20000,Ambient temperature 25,24 hours operation
Display area:192*64
Brightness:Can be adjusted by Potentiometer
Language:Simplified Chinese/ Traditional Chinese, English,
Character:
Chinese: 16*16 32*3
English:8*16 16*32
Xinje OP Operate Panel OP320-A Fuction Specification:
Electrical Features:
Input Voltage:DC24V
Voltage Range:DC20V~DC28V
Current Consumption:<140mA
Allowable Momentary power-cut:Less than 10mS(Actual power-cut less than 1 second)
Voltage Endurance:AC1000V,less than 20mA for 1 minute
Insulated Resistance:Above 10M,DC500V
Environment:
Operation Temperature:0 to 50
Storage Temperature:-20 to 60
Operation Humidity:10%RH to 90%RH(No condensing, dry bulb)
Interference Rejection:Noise voltage;1500Vp-p, Pulse cycle:1uS , Druation:1 minute
Atmosphere:Free of corrosive gas
Structure:
Cooling Method:Natural air cooling
External Dimension:283.3*193.9*50.0
Cutout Dimension:270.8*158
Touch Screen can be customized according to your requirements.
