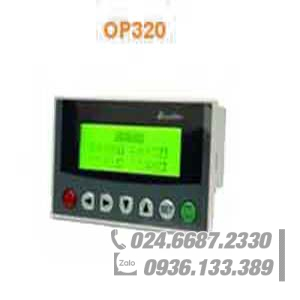

Xinje OP Màn Hình Panel điều khiển OP320

Xinje OP Operate Panel OP320 Description:
3.7-inch Monochrome LCD
7 key-presses can be defined as function keys
Replace some mechanical keys in control cabinet
RS232 & RS422 can be select freely
STN LCD with backlight
Display 24 characters ×4 rows
Alarm list function, Support various popular PLC
Xinje OP Operate Panel OP320 Specification:
Display:
Model:Kelly LCD
Using life:Up to 20000，Ambient temperature 25，24 hours operation
Display area:192*64
Brightness:Can be adjusted by Potentiometer
Language:Simplified Chinese/ Traditional Chinese, English,
Character:
Chinese: 16*16 32*3
English：8*16 16*32
Xinje OP Operate Panel OP320 Fuction Specification:
Electrical Features:
Input Voltage:DC24V
Voltage Range:DC20V~DC28V
Current Consumption:<140mA
Allowable Momentary power-cut:Less than 10mS（Actual power-cut less than 1 second）
Voltage Endurance:AC1000V，less than 20mA for 1 minute
Insulated Resistance:Above 10M，DC500V
Environment:
Operation Temperature:0 to 50
Storage Temperature:-20 to 60
Operation Humidity:10%RH to 90%RH（No condensing, dry bulb）
Interference Rejection:Noise voltage;1500Vp-p, Pulse cycle:1uS , Druation:1 minute
Atmosphere:Free of corrosive gas
Structure:
Cooling Method:Natural air cooling
External Dimension:172.0*94.0*30.0
Cutout Dimension:163*85
Touch Screen can be customized according to your requirements.
