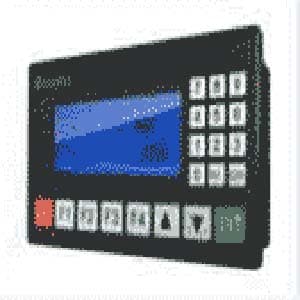

Xinje HMI MP Series Touch Screen MP325-A and MP325-A-S Description:
3.7 inch, monochrom LCD
20 function keys, support touch area
Suitable for various PLCs
Password protection and internal clock(Optional)
Key-press can be defined as function keys, partly replace the mechanical keys in control cabinet.
With backlight STN LCD
Xinje HMI MP Series Touch Screen MP325-A and MP325-A-S General Specifications:
Display Model:monochrom LCD
Display area:192*64
Using life:Up to 20000 Œ24 hours running based on ambient temperature 25
Language:Chinese, Japanese,English,etc.
Touch panel:Matrix and resistor touch mode
Keys:26 function keys
Screens:64KB FlashROM
Input voltage:DC24V
Voltage range:DC22V~26V
Consumption current:<140mA
Power off permit:< 10ms ( actual power off time is less than 1s )
Withstand voltage shock:AC1000V, 20mA less than 1 minute
Dimension:
External Dimension:172*94*40mm
Mounting dimension:164.2*86.8mm
Touch Screens can be customized according to your requirements.
